GF-B03

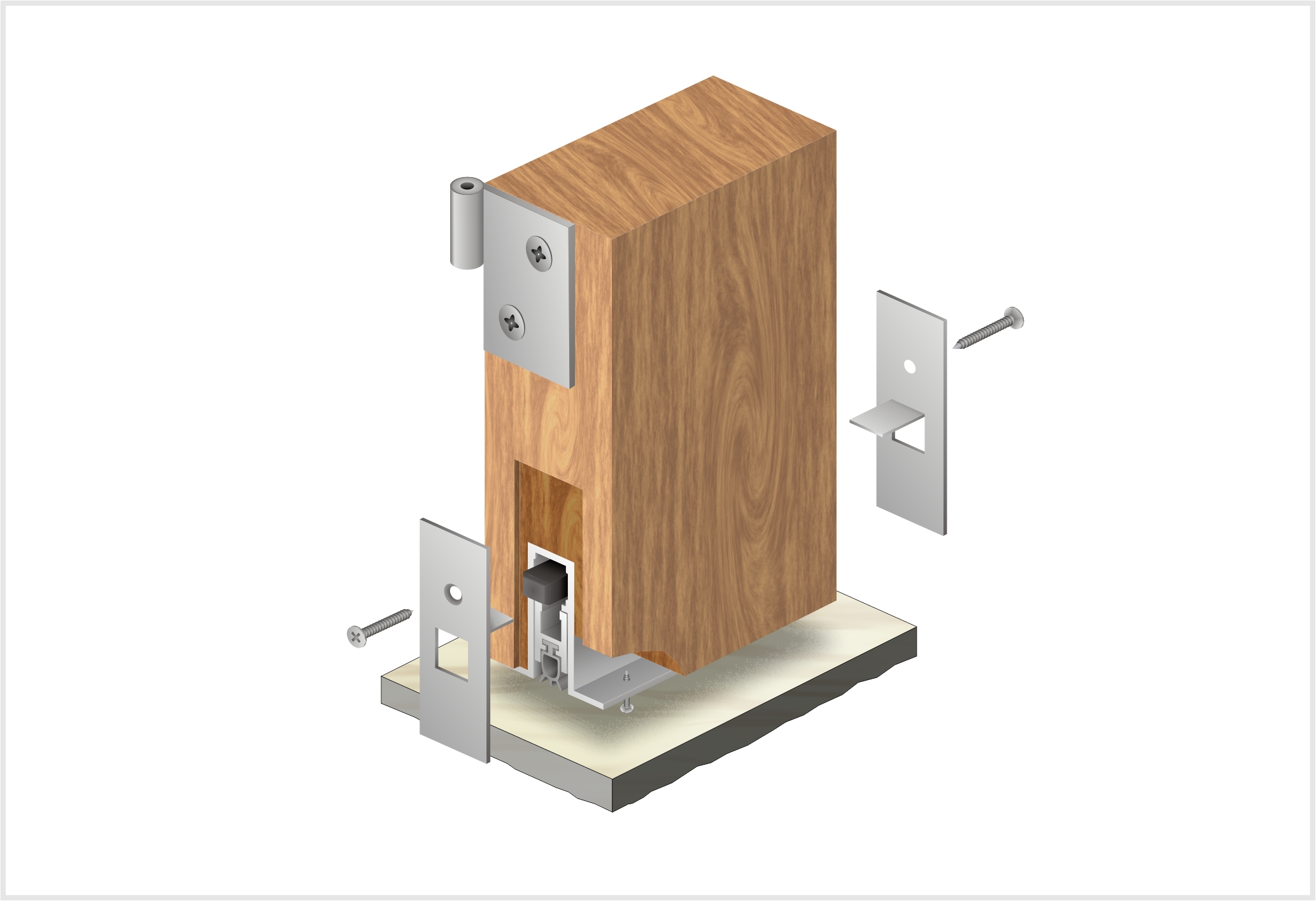

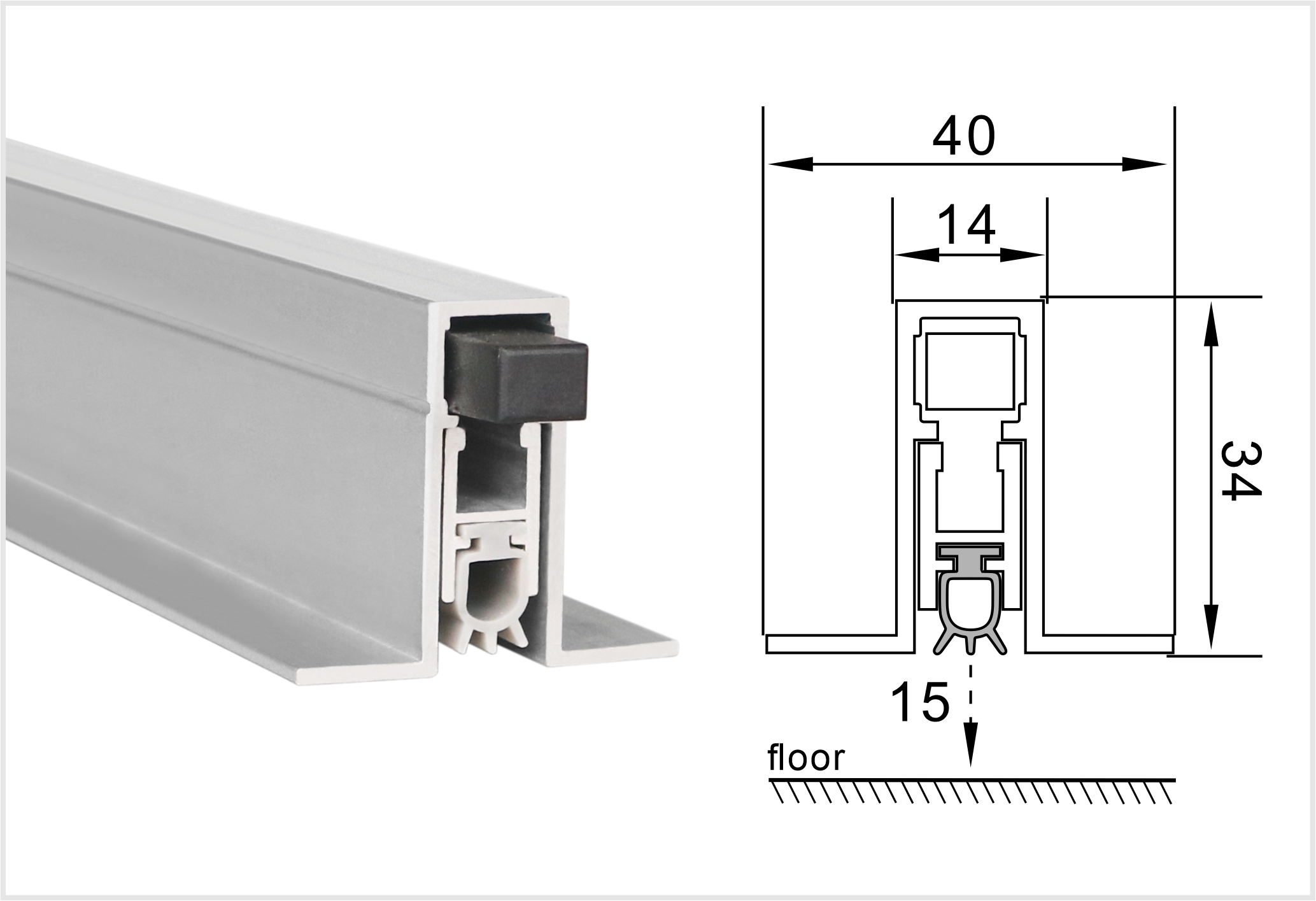

       Consealed drop down seal, M-type spring structure, suitable for doors with slots in the door leaf. During installation, a 34mm*14mm through slot is required at the bottom of the door. Place the product in it, fix it from the wing of the product, and install the decorative end cover with screws. Using this product does not affect the overall style of the door.

     • Length：330mm-2200mm

     • Sealing gap：3mm-15mm

     • Finish：Anodized silver

     • Fixing：With stainless steel bracket.                                                                                                                                With screw on fin,  bracket as cover optional.

     • Plunger optional：Nylon plunger, copper plunger, wedge plunger

     • Seal：Silicon rubber seal, gray or black colour
