GF-B04

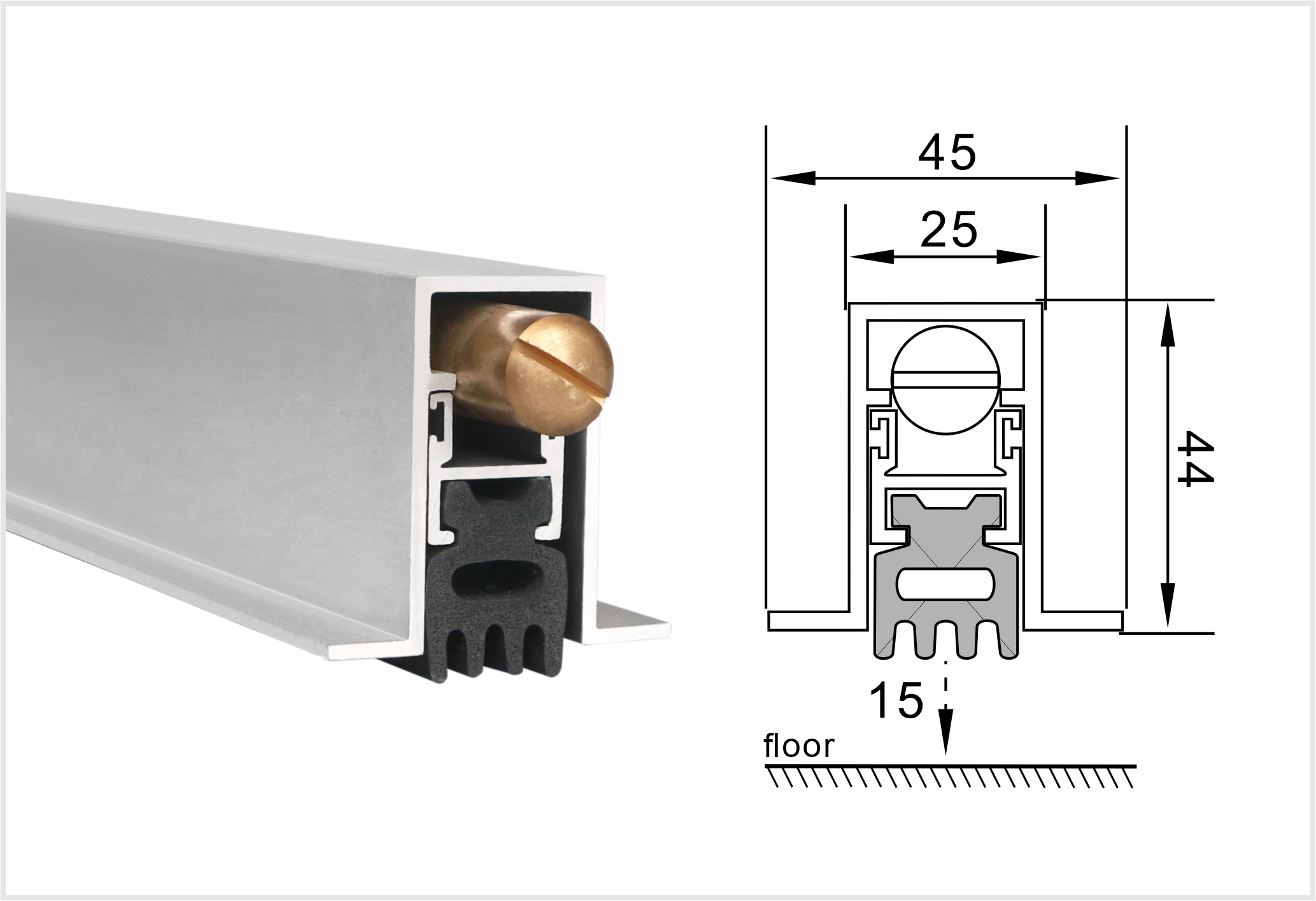

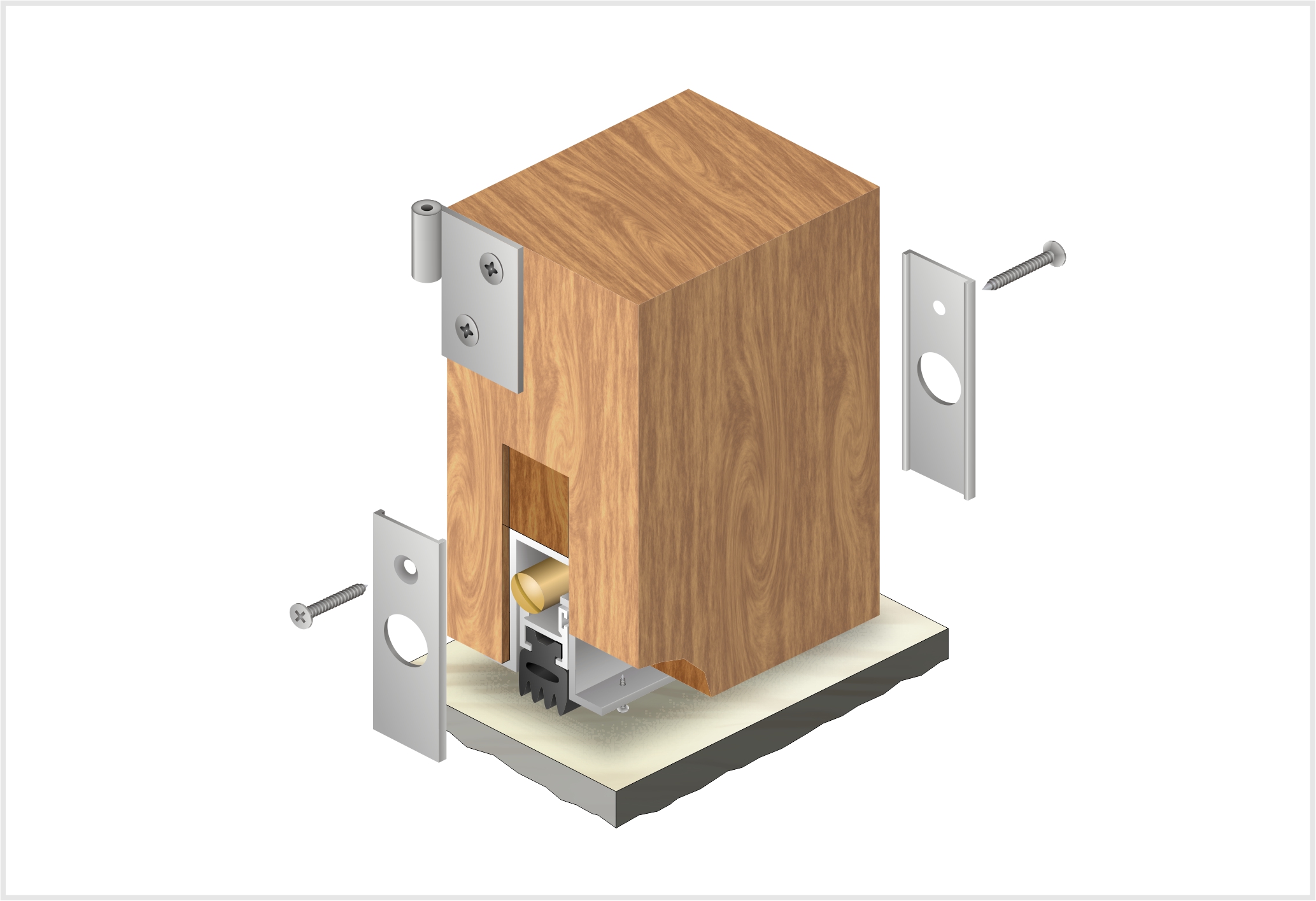

       Designed for heavy doors, the thickness of the door should be greater than 45mm, which is mostly used for doors that require high sound insulation in industrial and mining enterprises. During installation, a 44mm*25mm through slot is required to be processed at the bottom of the door, the product is placed in it, fixed from the product's wing, and the decorative end cover is installed with screws. The use of this product does not affect the overall style of the door.

     • Length：450mm-2300mm

     • Sealing gap：3mm-15mm

     • Finish：Anodized silver

     • Fixing：With screw on fin, standard cover plate supplied

     • Plunger：Copper plunger

     • Seal：EPDM foam rubber seal, black colour
