GF-B05-1

Release time:2020/9/21 16:00:11Popularity:58

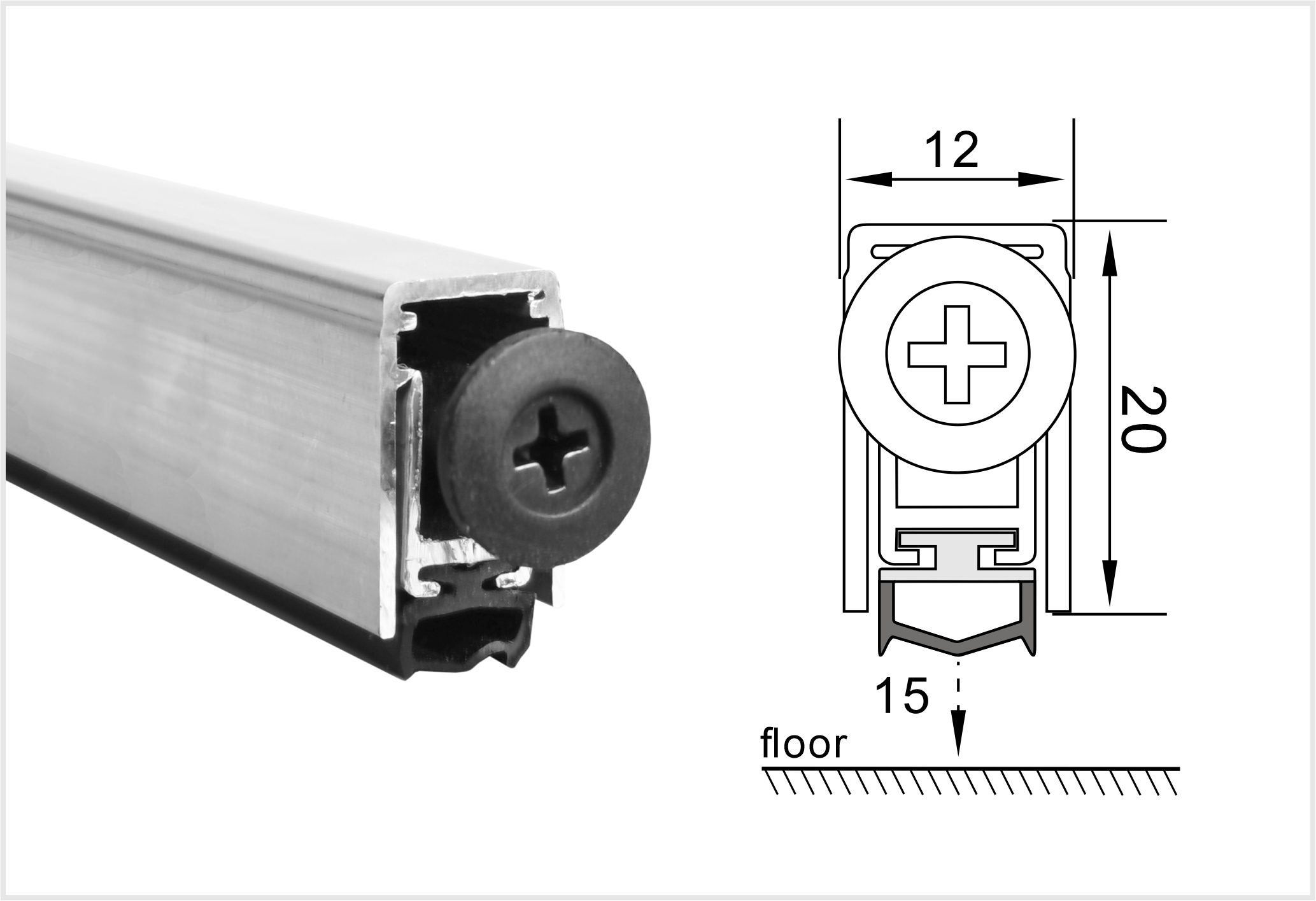

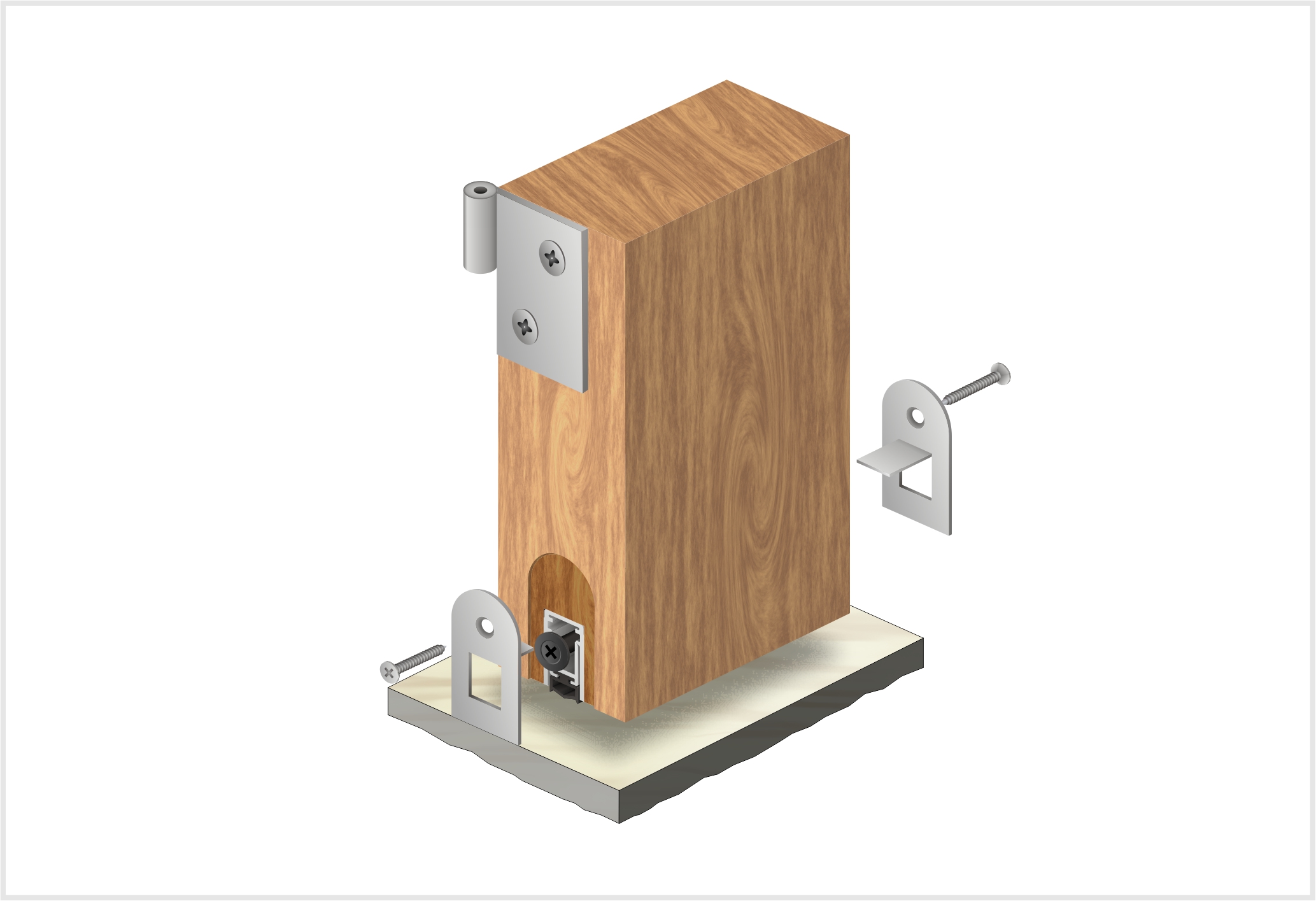

       Consealed drop down seal, four-bar linkage mechanism, suitable for doors with slots in the door leaf. When installing, there must be a 20mm*12mm through slot at the bottom of the door. Place the product in it, and fix the cover plate and the sealer at both ends with screws (or fix them upward from the bottom of the sealing strip). The use of this product does not affect the overall door style.


     • Length:260mm-1500mm

     • Sealing gap:3mm-15mm

     • FinishAnodized silver

     • FixingWith pre-mounted screws under the seal, endcap optional.                                                                             With stainless steel bracket

     • Plunger optional:Copper plunger, nylon plunger and universal plunger

     • Seal:Co-extruded PVC seal, black colour
