GF-B07

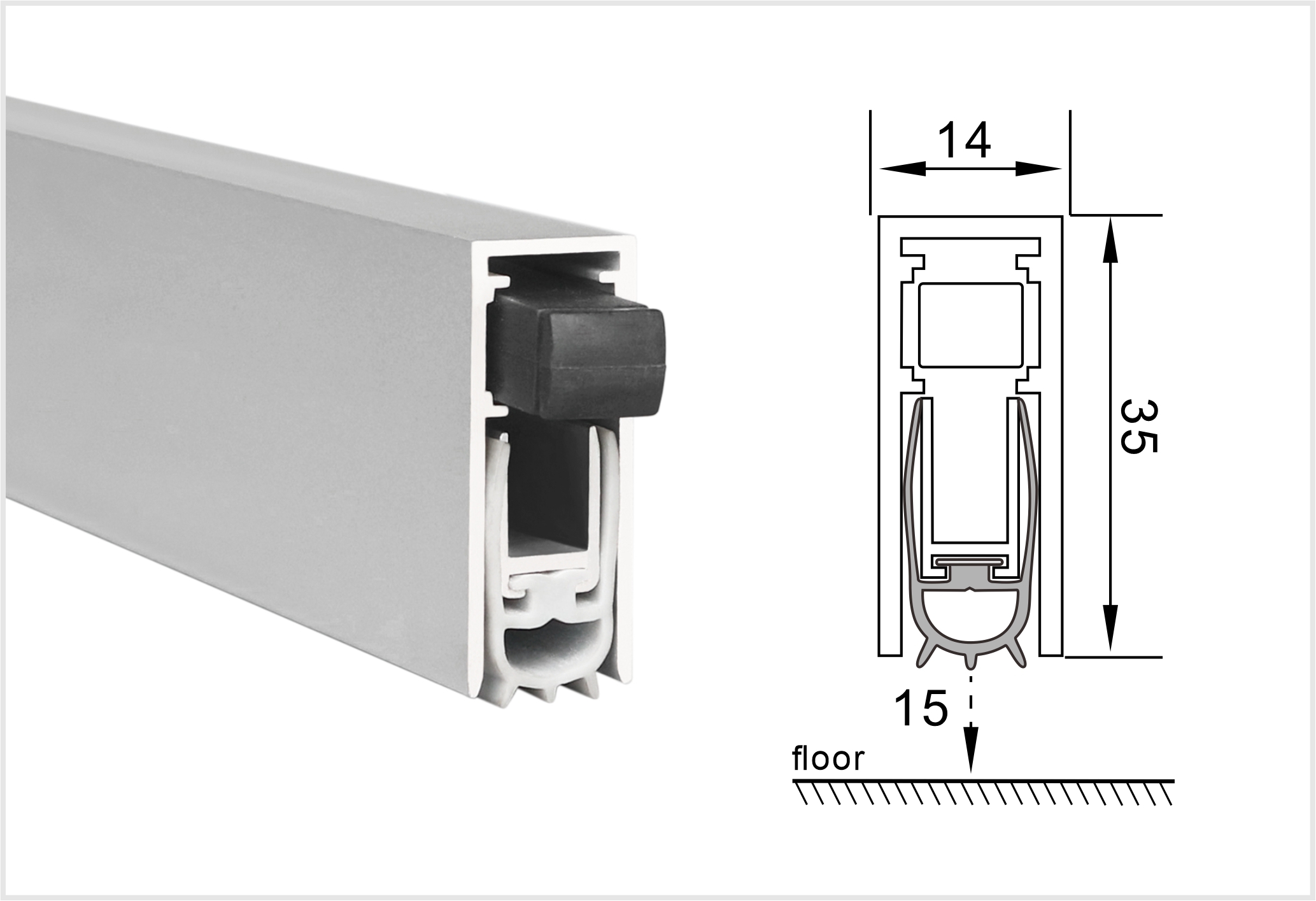

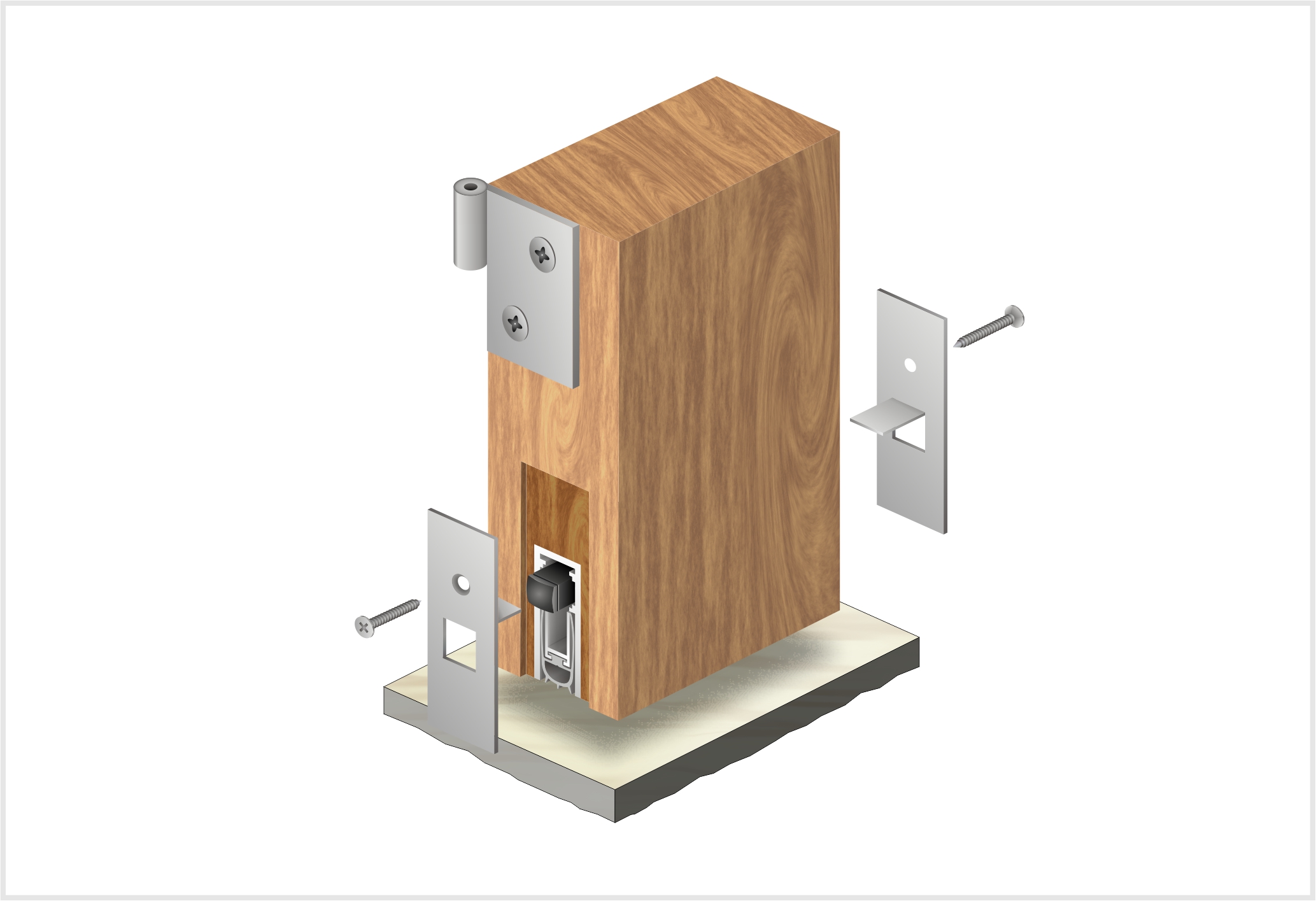

       Consealed drop down seal, four-bar linkage mechanism, suitable for doors with slots in the door leaf. During installation, a 35mm*14mm through slot is required to be processed at the bottom of the door, and the product is placed in it, and the cover plates and seals at both ends are fixed with screws. The use of this product does not affect the overall style of the door.

     • Length：330mm-1500mm

     • Sealing gap：3mm-15mm

     • Finish：Anodized silver

     • Fixing：With stainless steel bracket.                                                                                                                                With pre-mounted screws under the seal,and the standard screws are equipped with                                     hanging plate.

     • Plunger optional：Nylon plunger, wedge plunger

     • Seal：Thermoplastic rubber seal ,  gray or black colour
