GF-B08

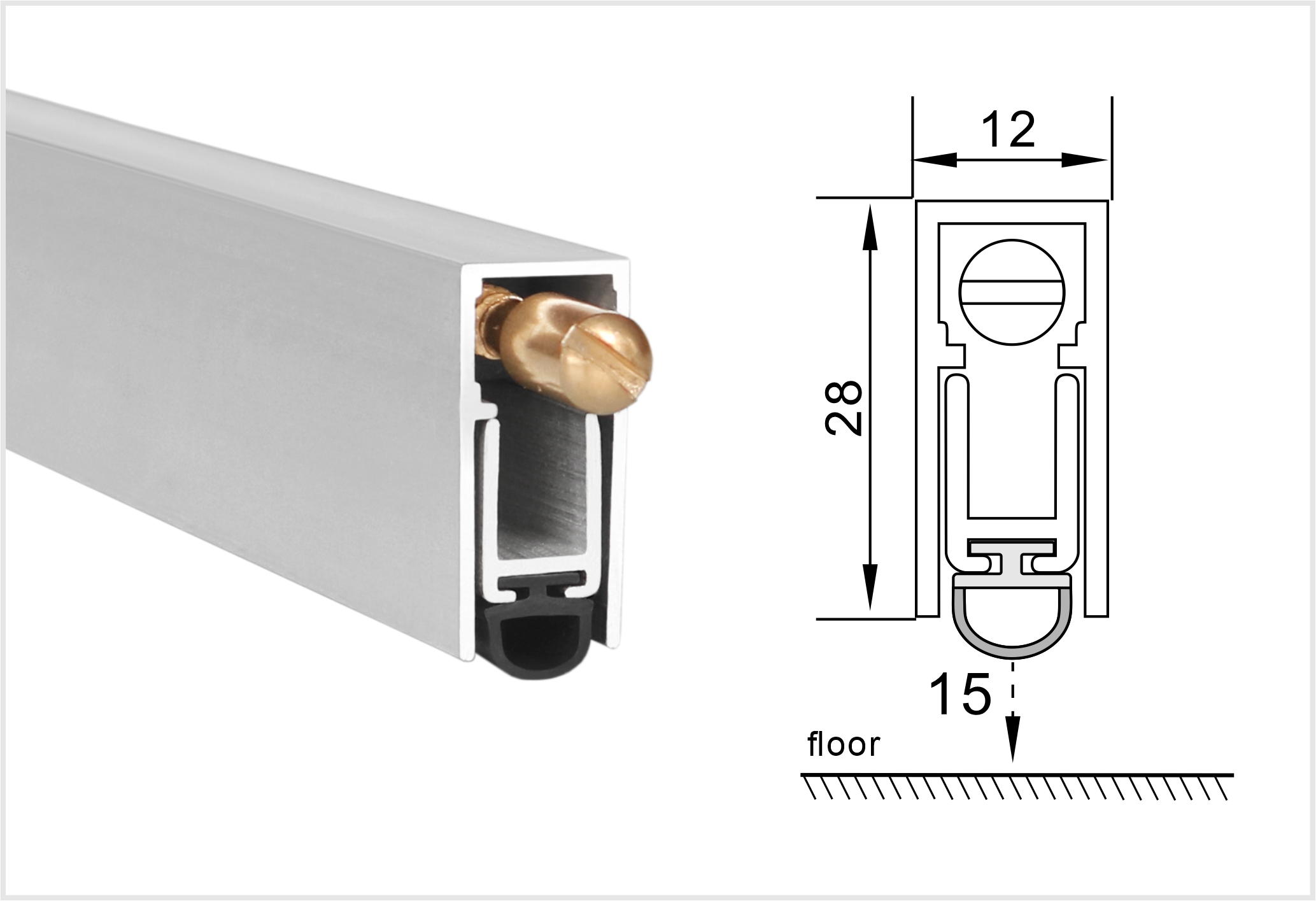

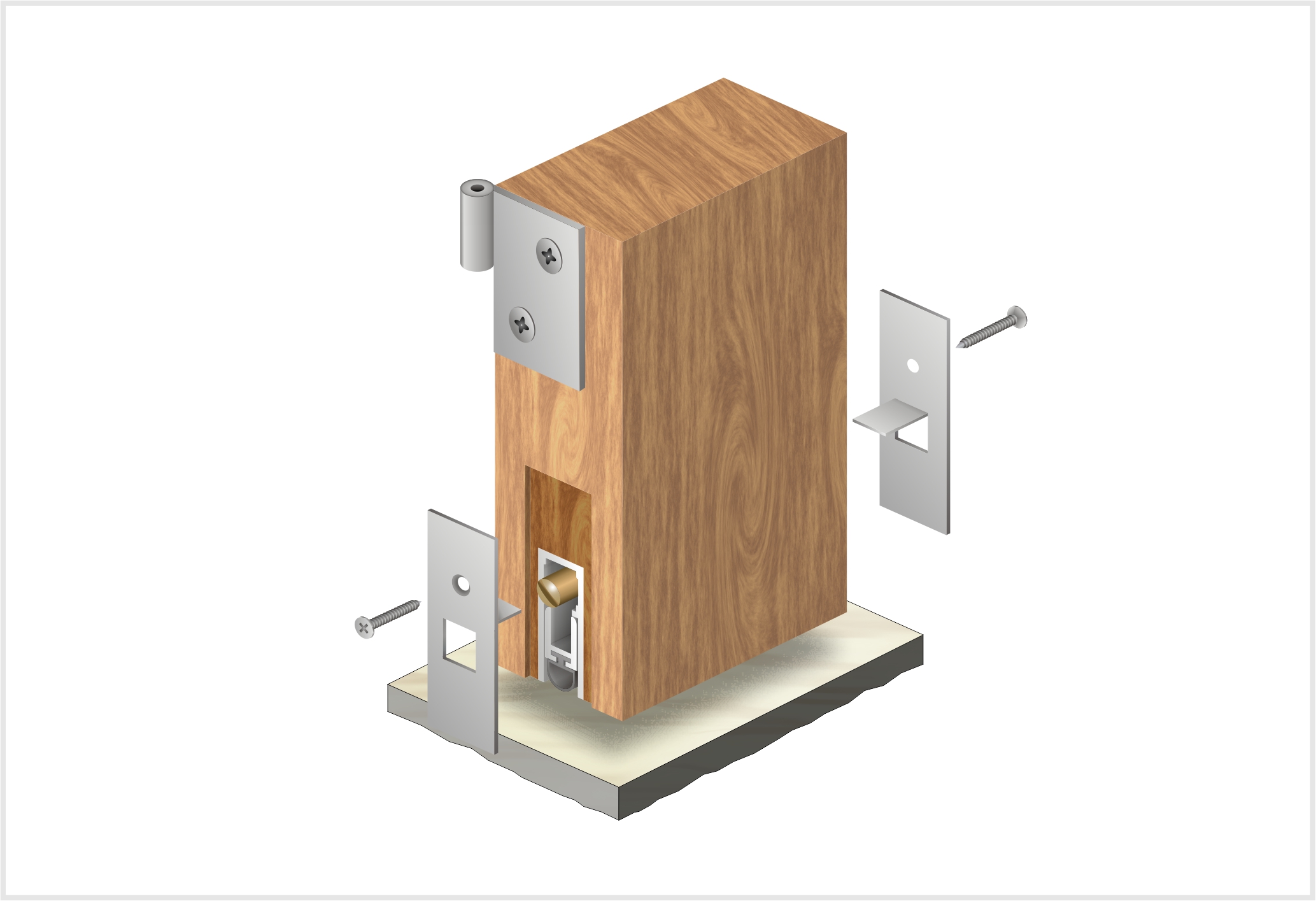

       Embedded door bottom automatic lifting sealer, four link mechanism, suitable for the door with slot in the door leaf. There should be a 28mm * 13mm through groove at the bottom of the door when installing. The product should be placed in it. The cover plate and sealer at both ends should be fixed with screws (or fixed from the bottom of the sealing strip upward). The use of this product does not affect the overall style of the door.

     • Length：330mm-1500mm

     • Sealing gap：3mm-15mm

     • Finish：Anodized silver

     • Fixing：With pre-mounted screws under the seal, endcap optional.                                                                             With stainless steel bracket,cover is optional.

     • Plunger optional：Copper button, nylon button, universal button

     • Seal：PCo-extruded PVC seal, black colour
