GF-B02

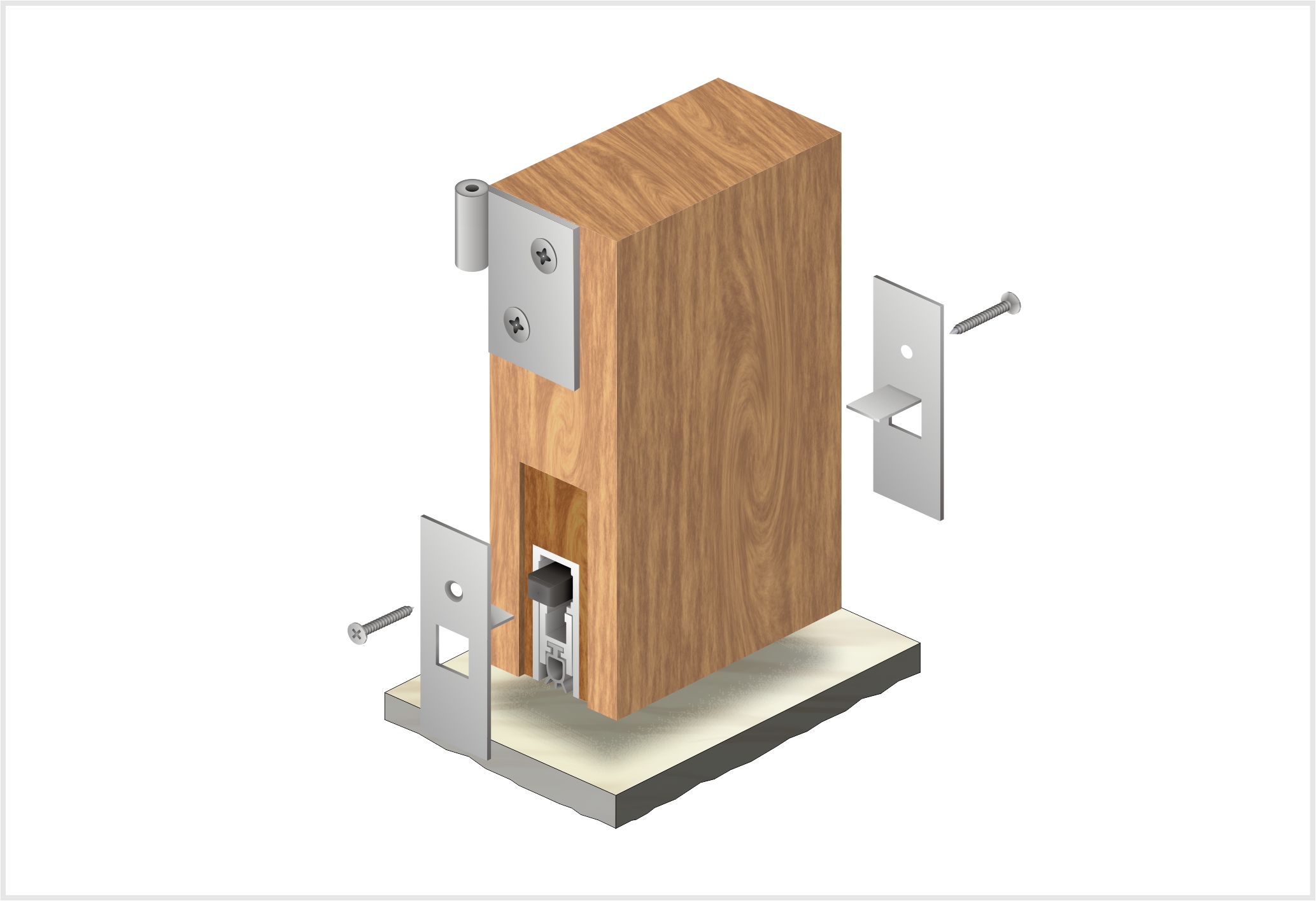

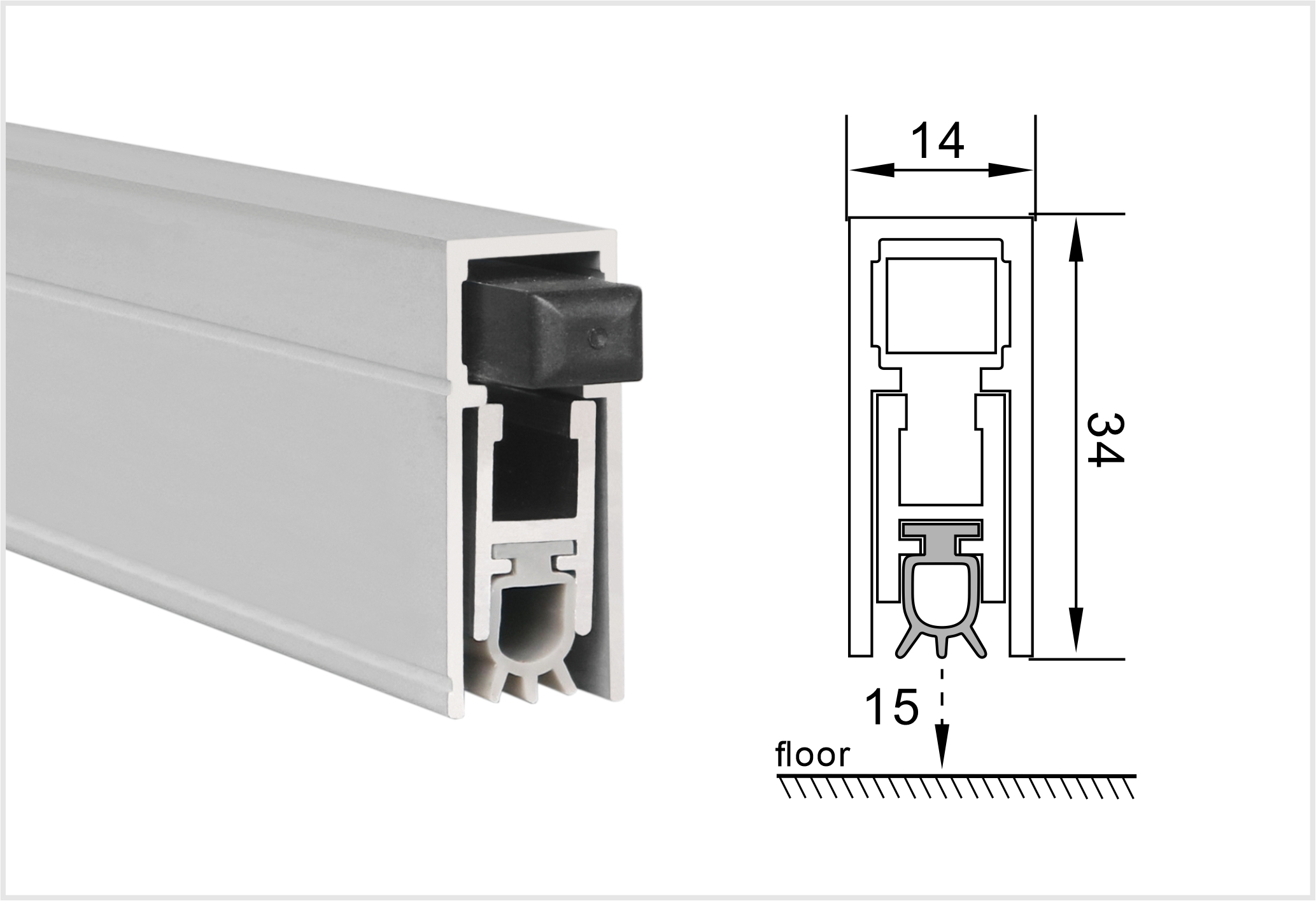

       Consealed drop down seal, M-type spring structure, suitable for the door with slot in the door leaf. When installing, a 34mm * 14mm through slot should be provided at the bottom of the door. The product should be placed in it. The cover plate and sealer at both ends should be fixed with screws. The use of this product does not affect the overall style of the door.

     • Length：330mm-2200mm

     • Sealing gap：3mm-15mm

     • Finish：Anodized silver

     • Fixing：With stainless steel bracket

     • Plunger optional：Nylon plunger, copper plunger, wedge plunger

     • Seal：Silicon rubber seal, gray or black colour
