GF-B062

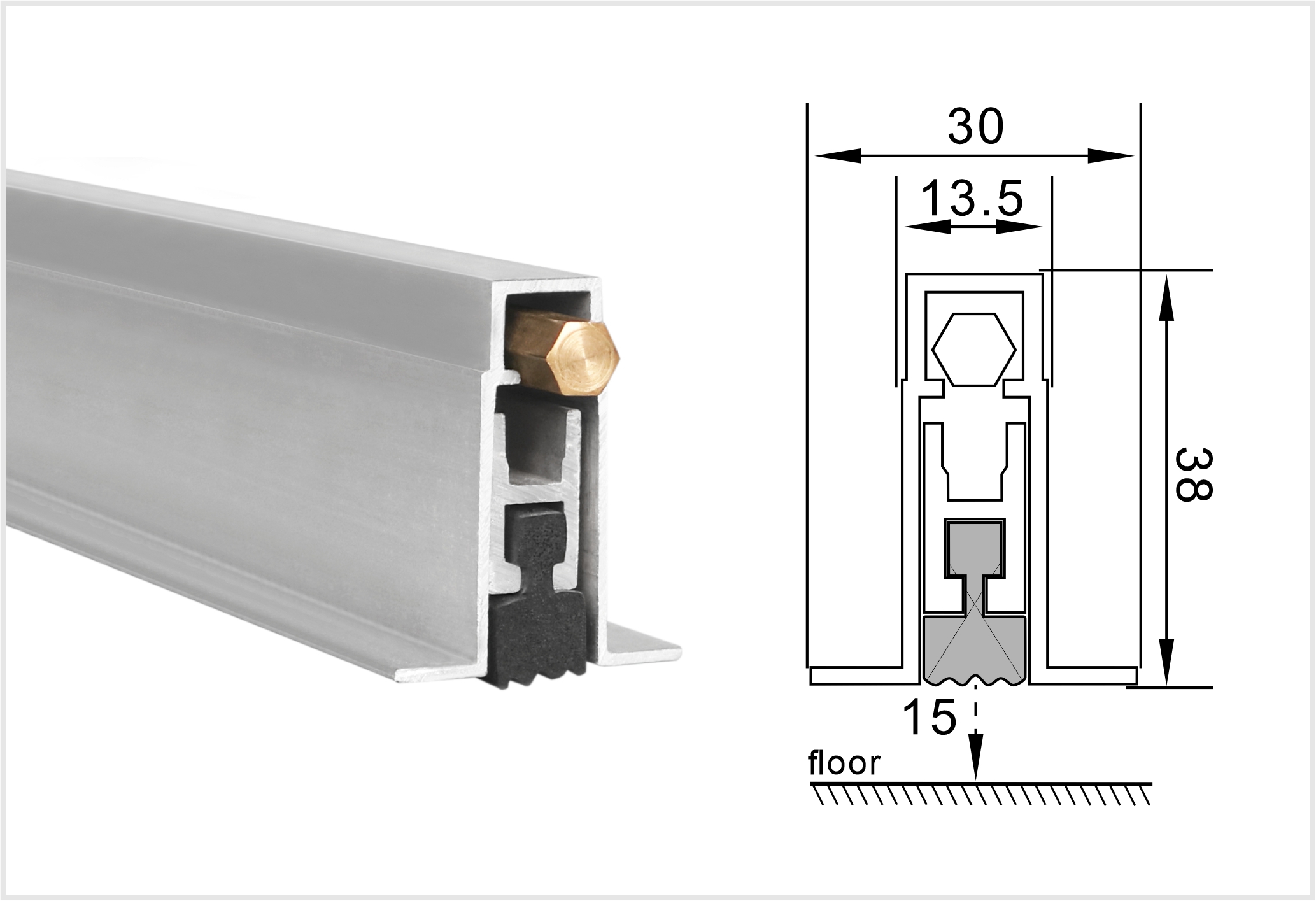

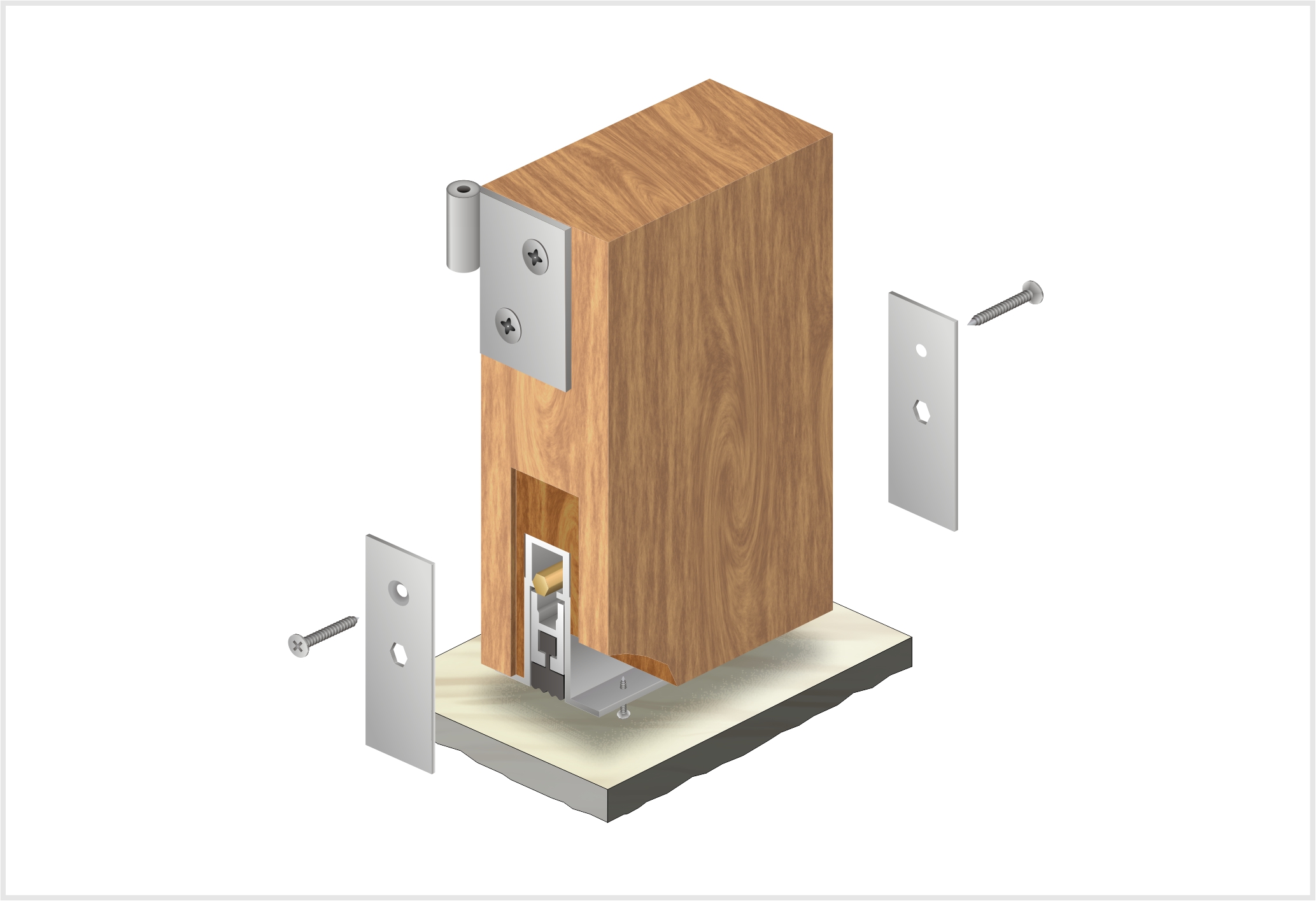

       Consealed drop down seal, M-type spring structure, suitable for doors with slots in the door leaf. During installation, a 38mm*13.5mm through slot is required at the bottom of the door. Place the product in it, fix it on the wing of the product, and install the decorative end cover with screws. The use of this product does not affect the overall style of the door.

     • Length：380mm-1500mm

     • Sealing gap：3mm-15mm

     • Finish：Anodized silver

     • Fixing：With screw on fin, standard cover plate supplied

     • Plunger optional：Hexagonal copper plunger, self-locking and anti loosing

     • Seal：EPDM rubber, black colour
