GF-B082

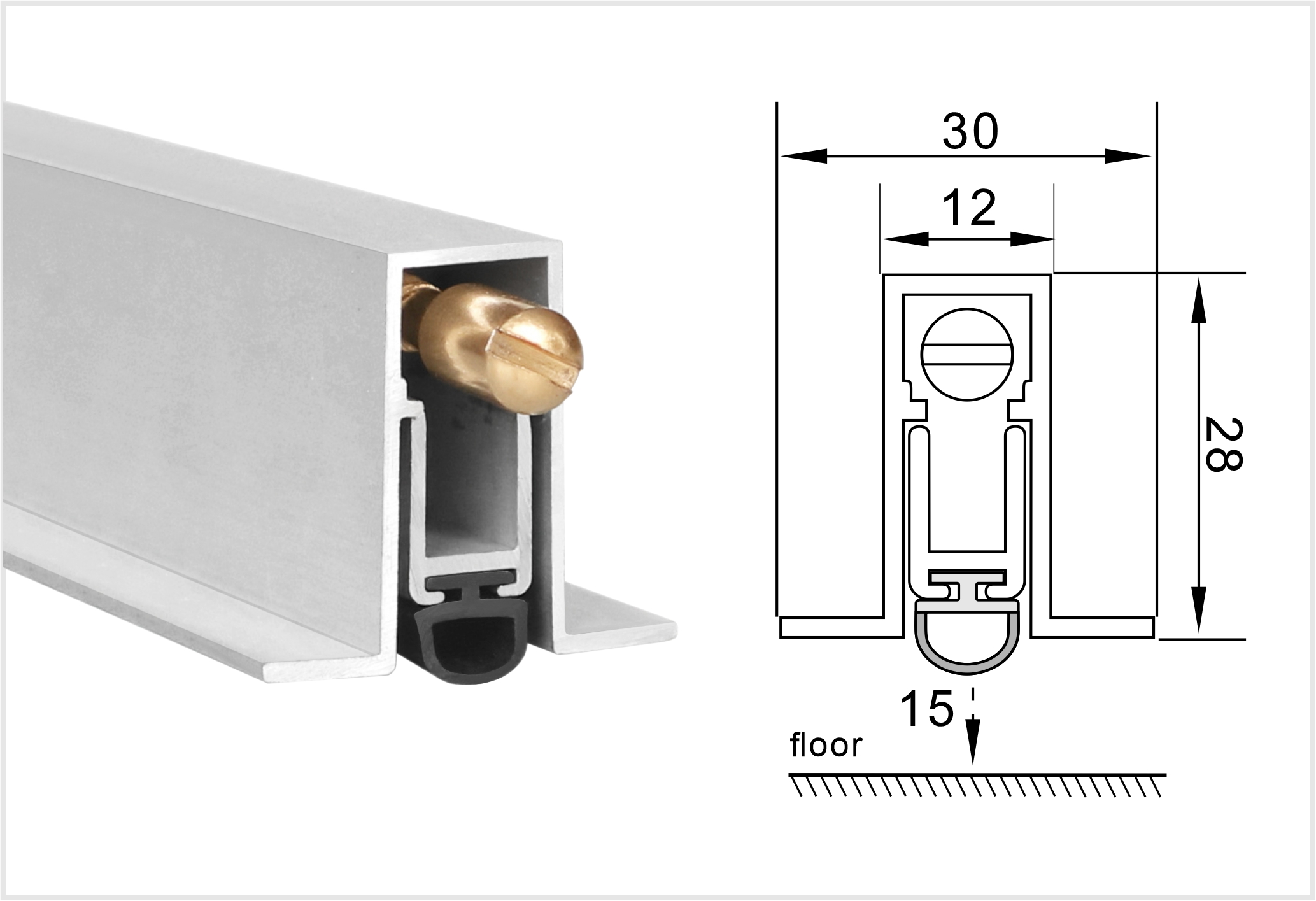

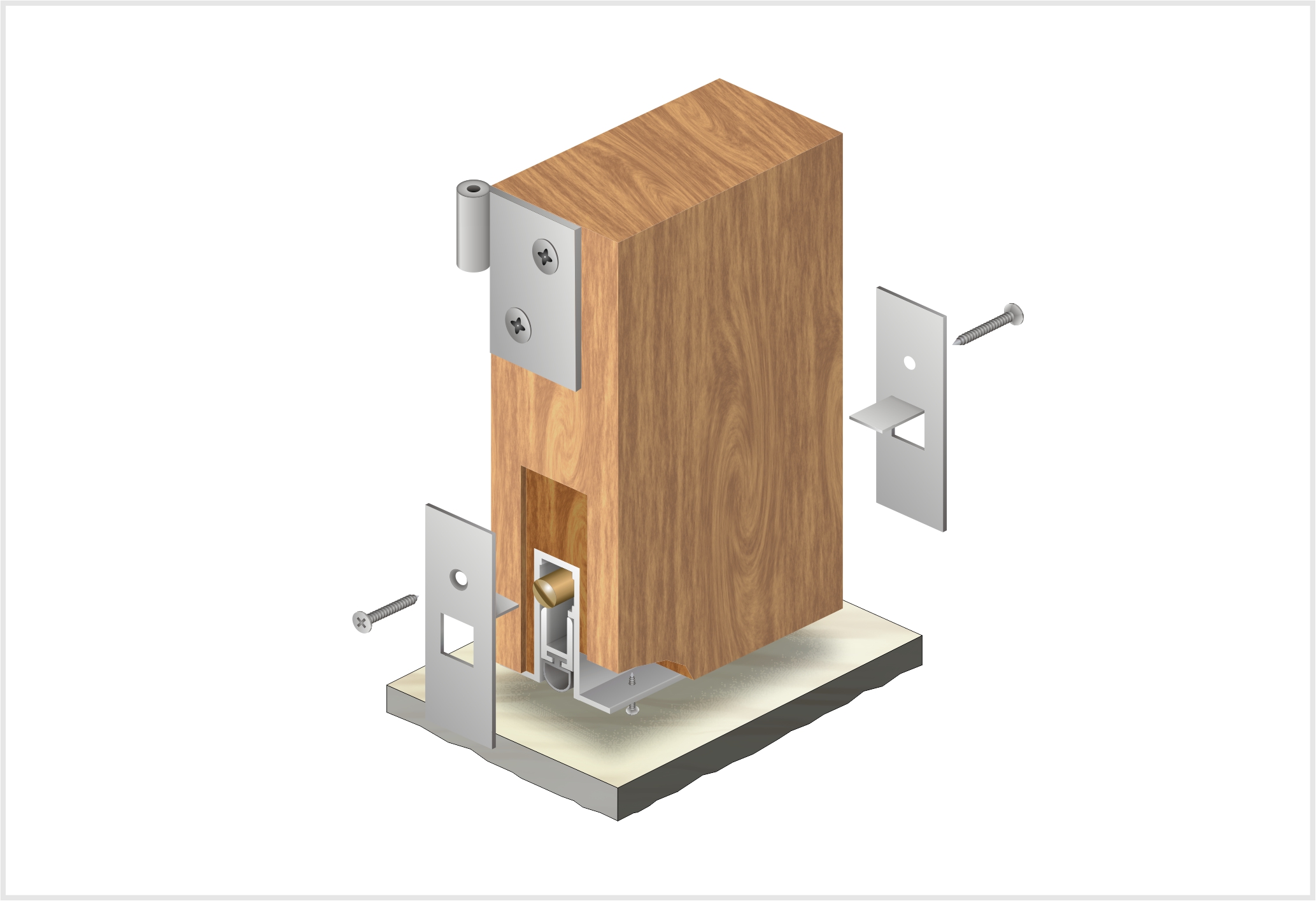

       Consealed drop down seal, four-bar linkage mechanism, suitable for doors with slots in the door leaf. When installing, there is a 28mm*13mm through slot at the bottom of the door. Place the product in it, and fix the cover and the sealer at both ends with screws (or use screws to fix up from the bottom of the sealing strip). The use of this product does not affect the overall door style.

     • Length：330mm-1500mm

     • Sealing gap：3mm-15mm

     • Finish：Anodized silver

     • Fixing：With pre-mounted screws under the seal, endcap optional.                                                                              With stainless steel bracket,cover is optional.                                                                                                    With screw on fin,  bracket as cover optional.

     • Plunger optional：Copper plunger, Ni plunger, wanplunger

     • Seal：Co-extruded PVC seal, black colour
