GF-B092-1

Release time:2020/9/21 16:54:07Popularity:32

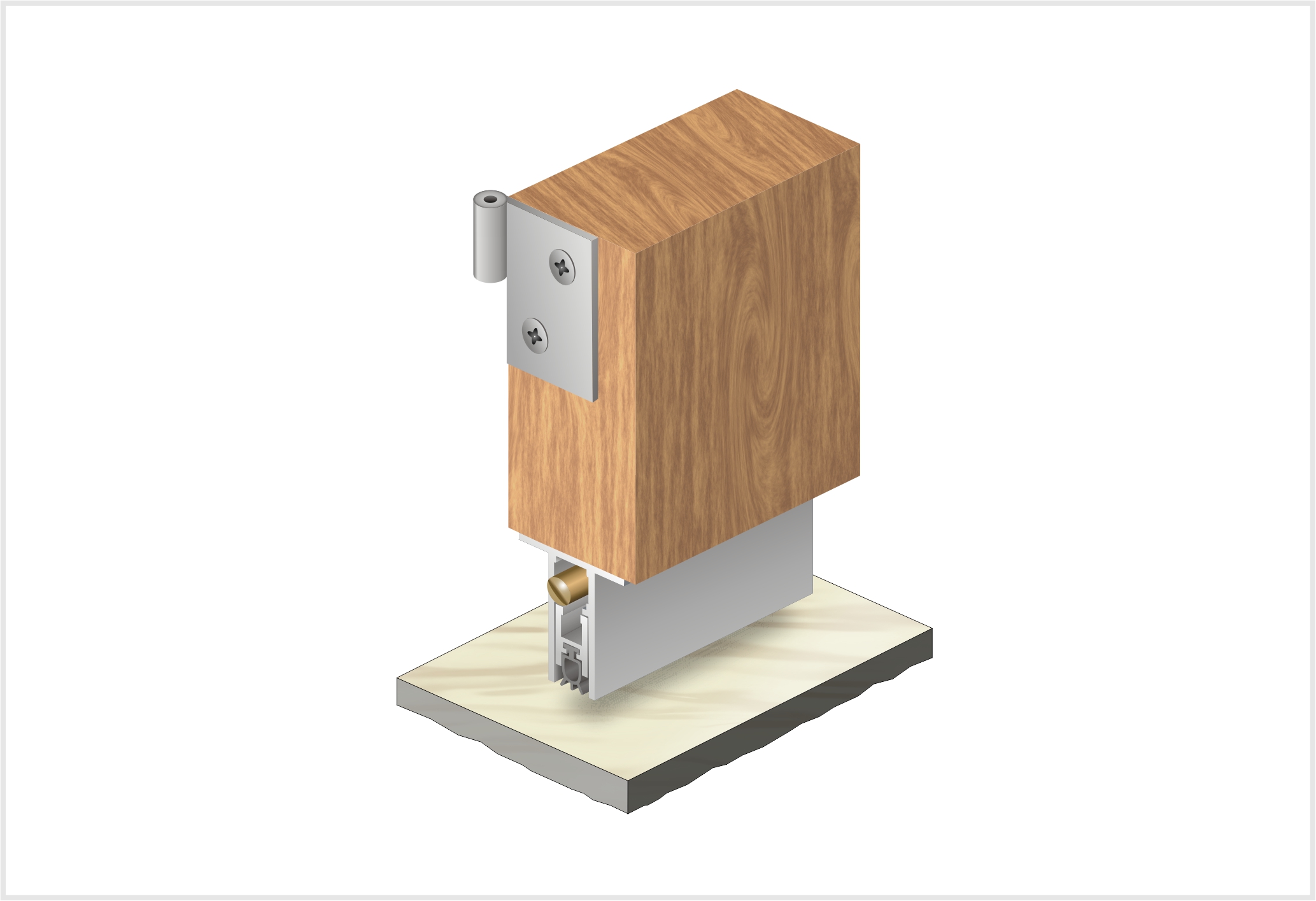

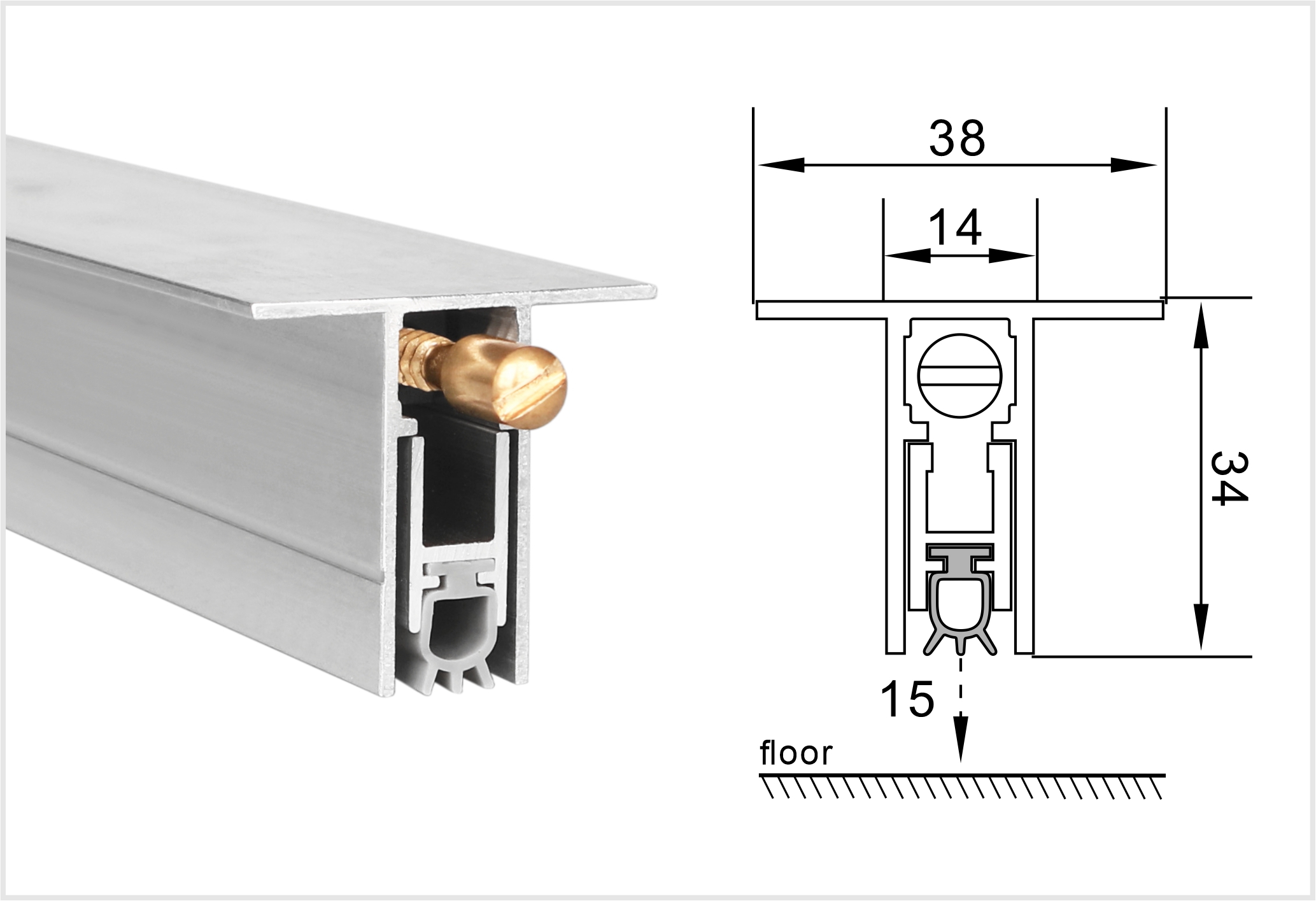

       In order to save the work of grooving at the bottom of the door, the B03 extended application drop down seal is specially designed. Just shorten the height of the door by 34~35mm when designing, and fix the bottom strip of the automatic door directly from the two wings with screws. Its function is the same as B092, the sealing strip rises automatically, and the rubber strip has no friction with the ground.



     • Length330mm ~1500mm,

     • Common specifications:510mm,610mm,710mm,810mm、910mm,1060mm,

     • Cutable length:100mm

     • Sealing gap3mm~15mm

     • Finish:Anodized silver

     • FixingInstallation of two wing screws

     • Plunger optional:Copper plunger, nylon plunger, universal plunger

     • Seal:Silicon rubber seal, gray or black colour
